Mini Waterproof Silicon Pets Collar GPS Tracker- Real time Locatoion of Your Pet on Your Phone

  • $86.00
  • Save $93




Mini Waterproof Silicon Pets Collar GPS Tracker Real time Locator GPS+LBS+WIFI Location Locator for Dog Cat Tracking Geofence

Main Features:

Newest Design Fashion Luxury S1 GPS Tracking Locator Collar is specially customized for your loved pets . It's with many excellent functions ,GPS+WIFI+LBS Multimode Positioning , Smart Voice Recall, Voice Monitor,High Pull Resistance,Waterproof , Geo-fence ,Historical Track ,Health Sports/Fitness Track ,Medicine Reminder etc.

With S1 Pets GPS Tracking Collar , no need to worry about where your loved pets will go any more . It's safe and healthy . Your best choice !

Featurs:

Product positioning :Intelligent Pets GPS Tracker

Main Features:GPS+WIFI+LBS mulfimode positioning ,Smart Voice Recall, Voice Monitor, intelligent power saving/management,real-time positioning

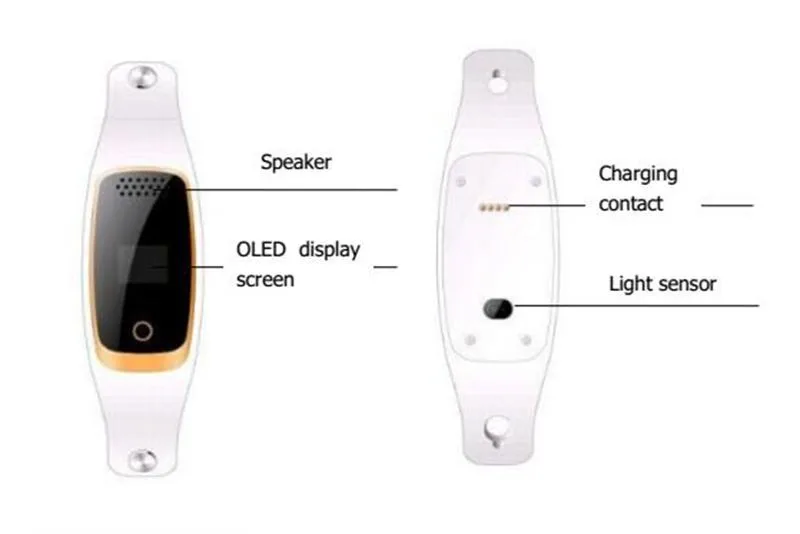

Structure

ID Style:  Fashion ,Luxury

Size:  120X35X12.5mm( Collar length is 60cm, girth 35-53cm)

Colors : White,Black,Red

Buttons:  1 button (power on/off button)

Screen : 0.66inch OLED

GPS anttenna : High sensitive ceramics active antenna

Battery : 500mAh

SIM card:  one slot

G-sensor : Support

I/O connector : magnetic charging





2.Hardware

Chipset :MTK MT6261

GPS chip:  MTK3337

GPRS: Class12

GPS signal: L1,1575.42MHz C/A code

GPS channel number :20 channels



GPS chip receive sensitivity :Tracking sensitivity:-159dBm,capture sensitivity:-143dBm



GPS location accuracy :5-15m

WIFI location accuracy :5-30M

LBS location accuracy :100-1000M

Minimum standby current :less than 0.5 mA



Average stndby current :less than 2.5 mA

Average working current: less than 55mA

Working temperature:  -20-70



Working humidity: 5% to 95% non-congealable

Test and certification :can approval by CTA ,3C,CE

GPS antenna: High sensitive ceramics active antenna

GSM antenna :Built-in Quad Band PIFA antenna

Bluetooth: Bluetooth 3.0(Normal closed)

G-sensor: Support

Speaker :AAC 1609 Speaker (same supplier with Apple company)

MIC: Support





Software

Operating systems :Support android 2.3 and above system, IOS5.0 and above.

Call function : Support Smart Voice Recall, Voice Monitor mode

Language support: Simplified Chinese and English

GSM+GPRS+GPS+WIFI:  GPS+WIFI+LBS Multi-mode positioning

Support AGPS : Cold start 26 seconds positioning

Power management: Ultra-low power consumption of power management,intelligent dormancy

Smart Geo-fence

Historical route :Can check history of three months

Wireless upgrading: Software upgrade, remote debugging maintenance, remote setting parameters





SIM Card Installation Method

Installation 1

1. Use screwdriver to  screw off the screws ,open the back cover

Installation 2

2. Open the SIM card slot , insert micro SIM card ,then close the slot cover

Main Product Functions

1. Real-time tracking

2. Historical route

3. Geo-fence

4. Smart Voice Recall, Voice Monitor

5. Various work modes : rapid positioning, standard positioning and save electricity positioning

6. Multi-platform monitoring : support android ,apple mobile phone system , computer network clients etc.

7.Universal: four frequency supports GSM network ,languages and time zone setting ,build global online parameters



Equipment Parameters

Positioning : GPS satellite positioning +AGPS auxiliary positioning + WIFI positioning + LBS base station positioning

Positioning accuracy : GPS location 5 to 15m        WIFI Location : 15-100m

Base station location : 100-1000m

Devices Size : 120Length x36Width x 12.5mm   Thickness (Pet collar inner diameter : 600mm)

Battery capacity : 500mAh     Longest standby time : 5days



GPS type: GPS Tracker
Voltage: 5V
Item Size: 120X35X12.5mm
Special Feature: Internet Connected
Screen Size: Under 2 Inches
Gps Module: Yes
Battery Life: 30 Hours & Up
